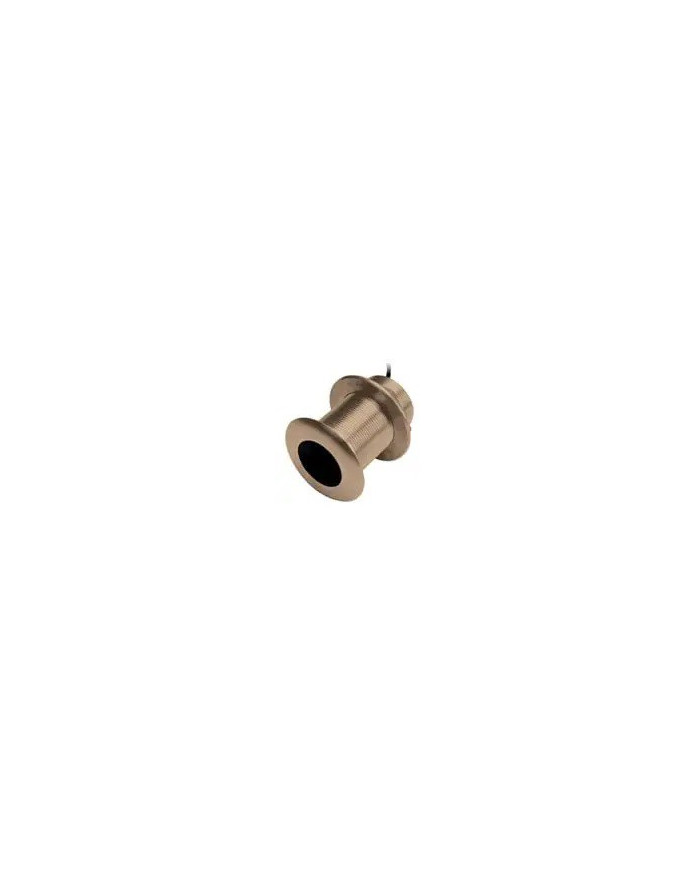

AIRMAR B164 Mix and Match 0 Deg Tilt Bronze 50/200 khz 1kW Thru-Hull Transducer

(Requires Mix and Match Cable to Suit Your Chartplotter Sonar Input Port)

This bronze thru-hull mount transducer performs well at high speeds and is an excellent choice for fiberglass and wood hulls. This flush-mounted housing protrudes less than a quarter of an inch outside the hull and can sit on trailer rollers/bunks without damage.

THIS MODEL INCLUDES A 2 M TAIL TERMINATED INTO A MIX AND MATCH 9 PIN CONNECTOR

This 1 kW transducer has a depth range of 1,200 to 1,800 ft; an operating frequency of 50 or 200 kHz; a beamwidth of 22x20 or 6x6 degrees; and mounts on a 0 to 12 degree deadrise angle.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

*Do not use on metal hulls.
