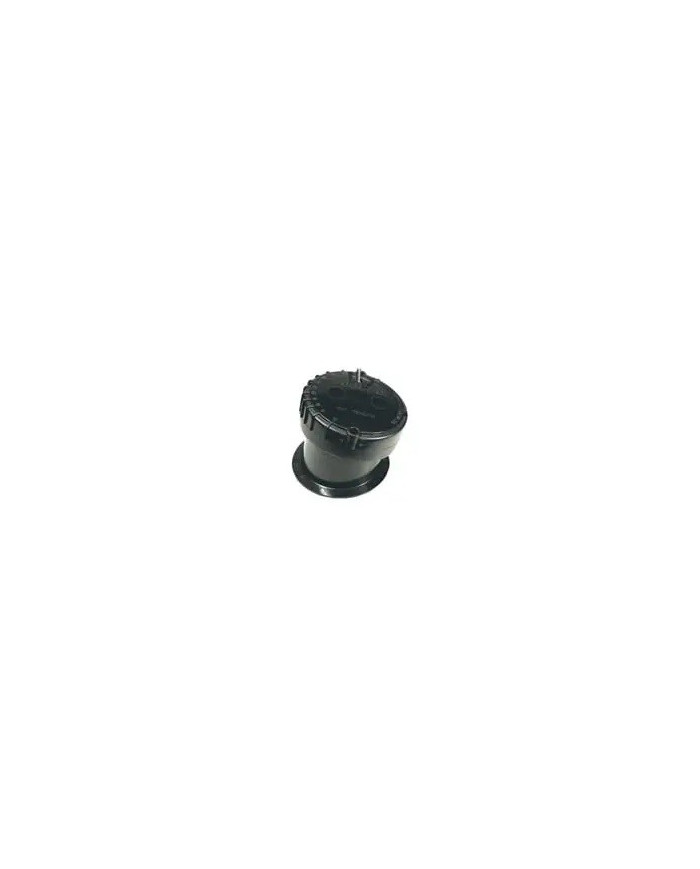

Garmin AIRMAR P79 600 W 50/200 Khz Transducer 8 -Pin In Hull

Garmin AIRMAR P79 600 W 50/200 Khz Transducer 8 -Pin In Hull

This plastic in-hull transducer with an adjustable deadrise angle makes installation a snap.

The NMEA 2000 100 W transducer has a depth of 500 ft; an operating frequency of 235 kHz; a beamwidth of 6 degrees; and a 0 to 22 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

*Not recommended for cored hulls. Maximum fiberglass thickness should be no more than 5/8" thick.

SPECIFICATIONS

General

Transducer frequency: 50/200 kHz

Transducer power: 600 W

Transducer beamwidth: 45/12

Transducer maximum depth: 800-1,200 ft.

Transducer cable length: 25 ft.

Transducer depth/speed/temperature: Depth Only

Transducer number of pins: 8-pin

Transducer supported deadrise/transom angles 0°-22° degree deadrise

Transducer Support

Transducer frequency 50/200 kHz

Deadrise Intuitive! The unique adjustable-angle design ensures the beam is vertically oriented for maximum echo returns and the best possible performance. Because the transducer is mounted inside the hull, it is the perfect solution for rigid inflatable boats (RIBS) and racing sailboats.
